Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment
Pyrolysis Plant is used for recycling waste tire, waste plastic, waste rubber to fuel oil. According to the actual situation in every country and district, we developed different models of Continuous Waste Tyre Pyrolysis Plant for waste tires, rubber and plastic with daily capacity 30ton-40 tons,50tons,80tons,100tons
Outstanding Features:
1. You just need preheat at the first time when the machine start producing. And then the machine can produce lasting for 20days without stop. Because it can use the waste gas to heat the chamber, no need other energy.
2. The most capacity can reach 100T/D, much bigger than other kind of plant. It is fully-automatic and fully–continuous.
3. New design of vertical condensers .you can get high oil yield, good oil quality, high profit.
4. The carbon black and steel discharging is easier. The carbon black and big size steel can discharge when the chamber is hot needn’t cooling down. Very save energy.
5. Low requirement on the raw materials, no need tiny granule, 10cm pieces acceptable for smooth running.
Technical Specification
| No | Specification | Fully continuous waste tyre/plastic/rubber prolysis plant |
| 1 | Model | HNJZ-30 | HNJZ-40 | HNJZ-50 | HNJZ-60 |
| 2 | Working type | Fully continuous | Fully continuous | Fully continuous | Fully continuous |
| 3 | Raw Material | Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge |
| 4 | 24 hour handling capacity | 30T | 40T | 50T | 60T |
| 5 | 24 hour oil production | 14T | 18T | 22T | 27T |
| 6 | Heating way | Directly heating | Directly heating | Directly heating | Directly heating |
| 7 | Working pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure | Ordinary pressure |
| 8 | Cooling way | Water cooling | Water cooling | Water cooling | Water cooling |
| 9 | Water consumption | 10T/H | 12T/H | 16T/H | 20T/H |
| 10 | Noise | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) | ≤85DB(A) |
| 11 | Total weight | 60T | 68T | 75T | 80T |
| 12 | Area | 47*10*9M | 53*10*9M | 55*10*9M | 58*10*9M |
Usage of the end products:
Crude carbon black ----make briquettes for heating use;make bricks to pave street
Pyrolysis fuel oil------ sell directly for heating oil; to refine into diesel grade oil.
Sync gas ------recycle to heat machine during production.
Applications
It is applied to extract fuel oil from waste tires, rubbers, plastics, soles, life garbage, cable skin and so on .
seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor, considerable cost of tire plastic plant.
Q: What's environmental pollution problems during the conversion process?
A:The environmental problem includes waste water, waste gas and waste solid.
Q:How to assure the reactor safety?
A: Our reactor is made by automatic welder machine. Welding technology and latest X- ray testing and flaw detection to protect gas from leak.
Q:How to solve the environmental problem when operating the reactor?
A:1.We have the closed discharging system and it is compete closed no fly ash and no pollution.
2.The water seal is also a gas purifier, when waste gas go through the water seal, some pyro-gas will be cooled down and the combustible gas will be sent into the heating system as fuel.
3.The whole process is no solid waste.
4.The emission control system can deal with waste flue gas with no pollution to environment.
|
|

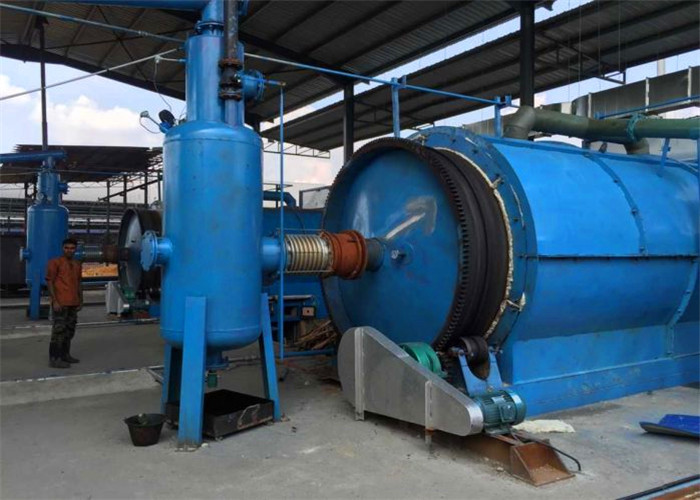

Continuous Pyrolysis Recycle Waste Tyre/Plastic/Rubber To Oil Equipment Images
|
